Universal Strut Connector (USC)New
Used for large standoff conditions
The Universal Strut Connector (USC) is a single connector for long stand-off curtain wall connections. It works for both deflection and rigid applications, making design and installation easier.
Quick Actions:
The Universal Strut Connector (USC) is a high-performance curtain-wall connection system that combines long-reach stand-off capability with a rigid, high-strength clip — all in a single, universal connector. It is designed to support either rigid or deflection connections, giving engineers and contractors maximum flexibility for medium to large stand-off curtain-wall conditions.

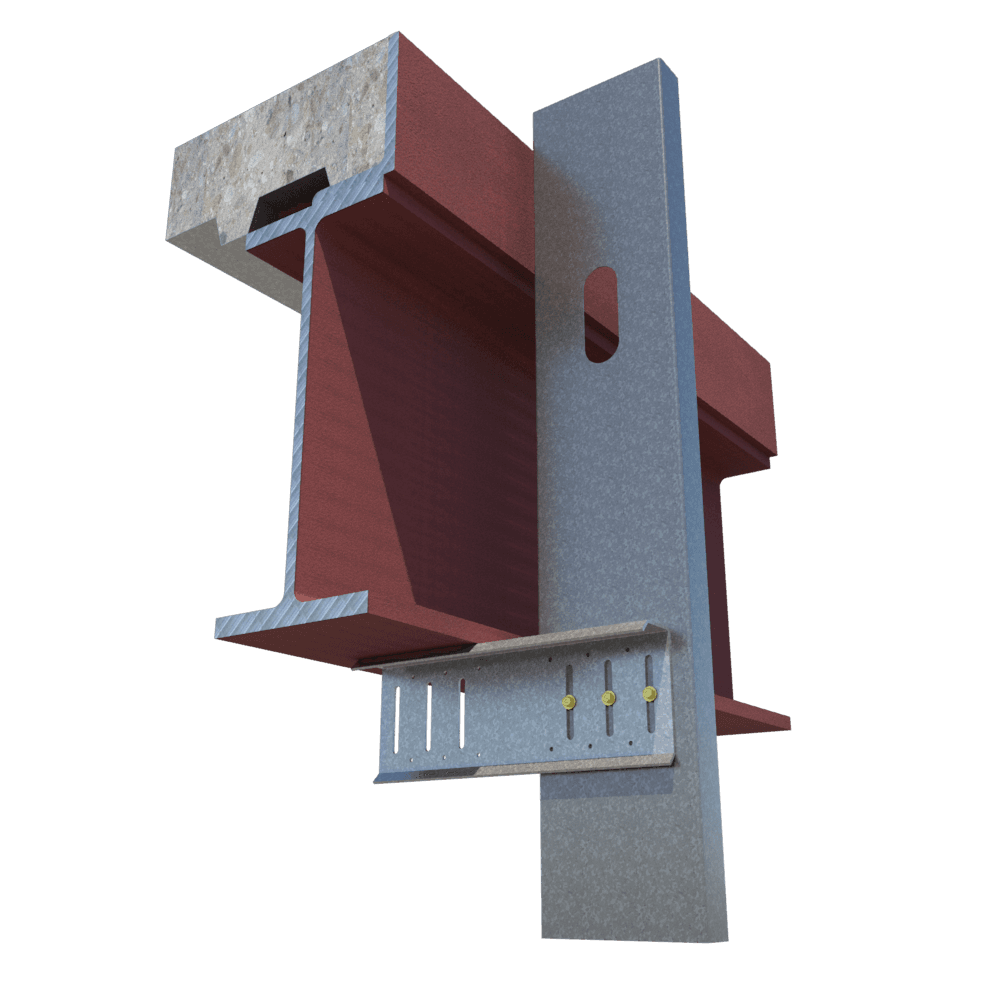

The connector comes with proprietary deflection screws for when vertical movement is required, allowing the stud to slide freely while maintaining lateral and axial load transfer. When deflection is not required, the same connector can be installed as a rigid attachment using standard fasteners. With strut lengths up to 24", the Universal Strut Connector eliminates the need for built-up framing or stacked clips — simplifying details while improving performance.
Key Features:
- Installs as either a rigid or deflection connection using the same connector
- Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down) when installed as a deflection application
- Proprietary Deflection Screws (included) provide frictionless slip connection
Alternative Products
Material Specifications
Gauge: 14 gauge (68mils)
Design Thickness: 0.0713 inches
Material: 50 ksi
Protective Coating: G90
Product Data & Ordering Information
| Product code | Thickness Mils (Gauge) | Size (in) | Pcs./Ctn. |
|---|---|---|---|

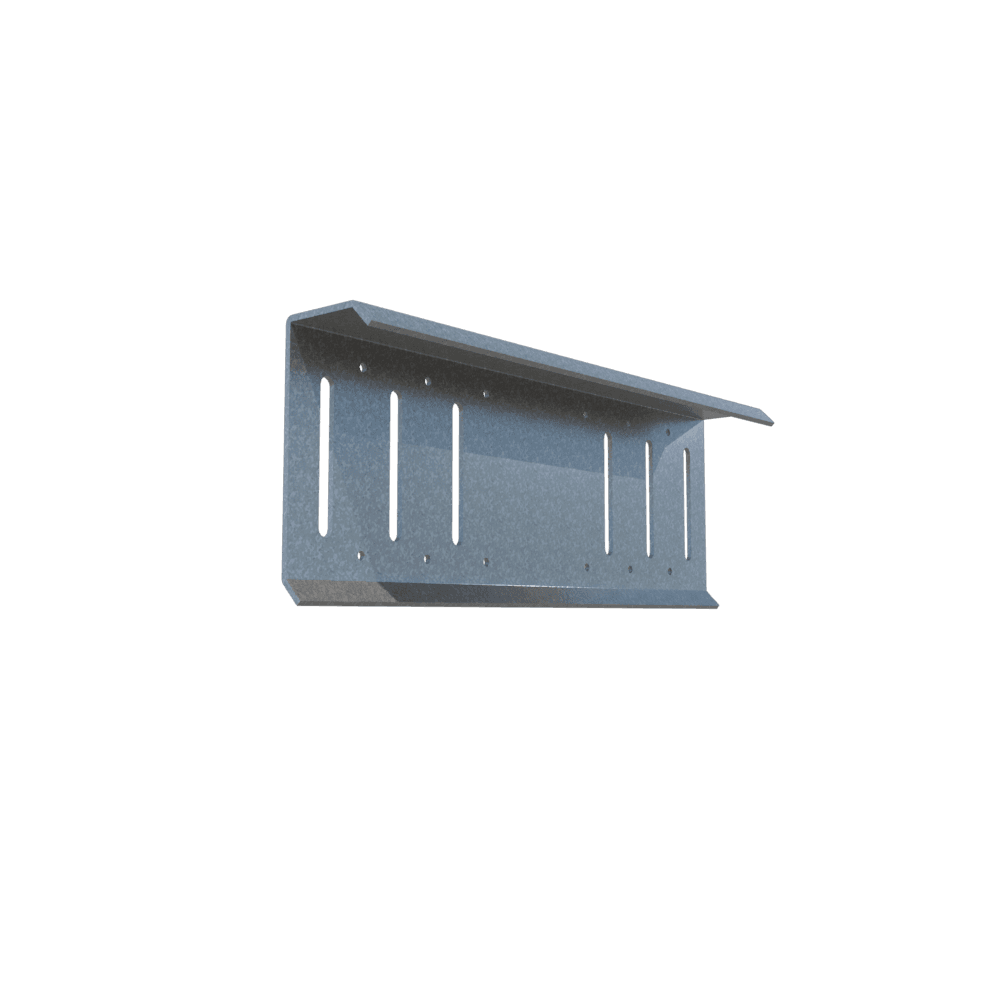

| USC12-68 | 68 (14) | 4 x 1-1/2 x 12 | 10 |

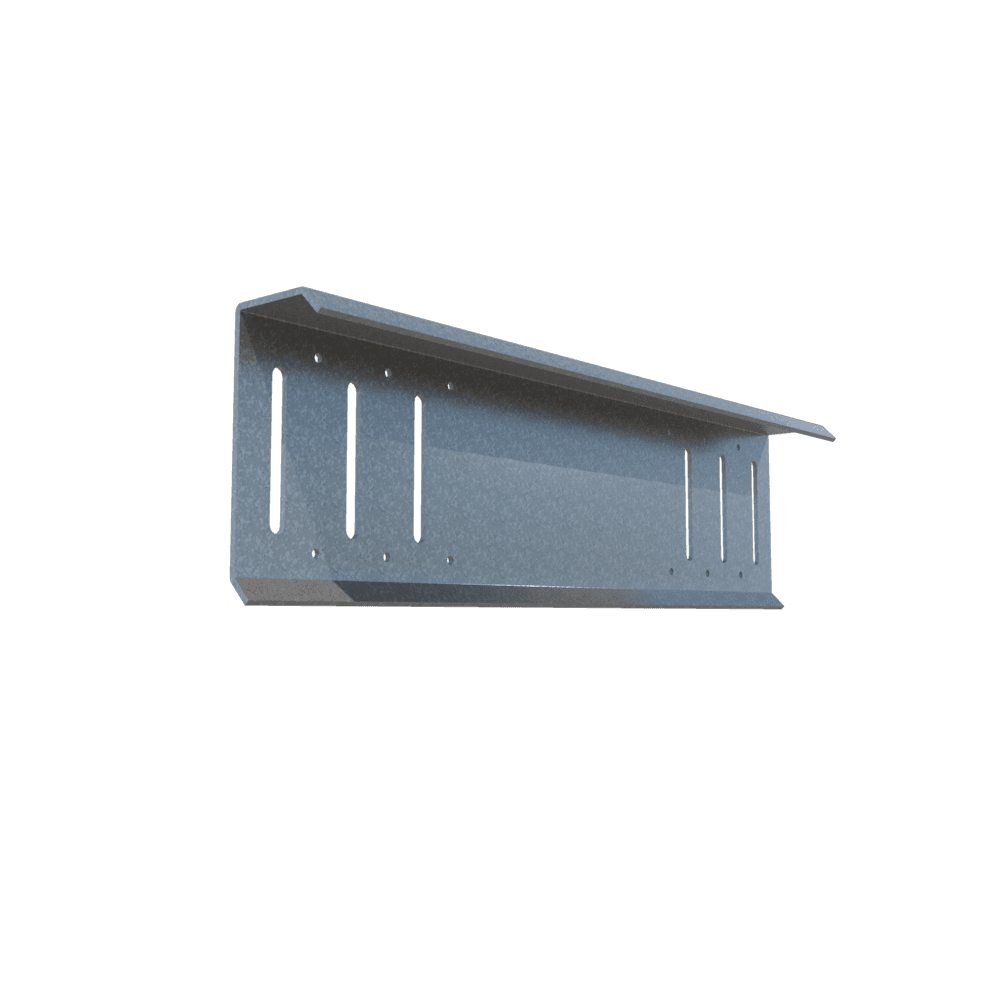

| USC16-68 | 68 (14) | 4 x 1-1/2 x 16 | 10 |

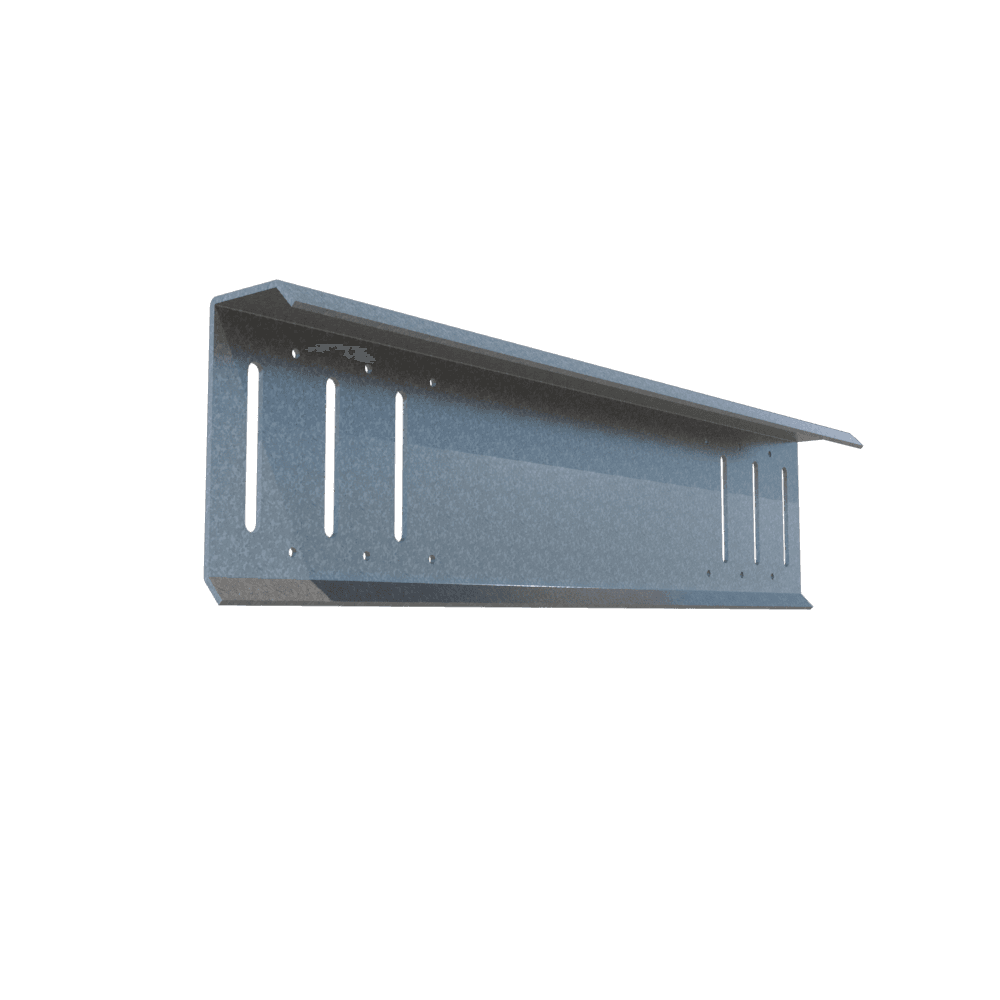

| USC18-68 | 68 (14) | 4 x 1-1/2 x 18 | 10 |

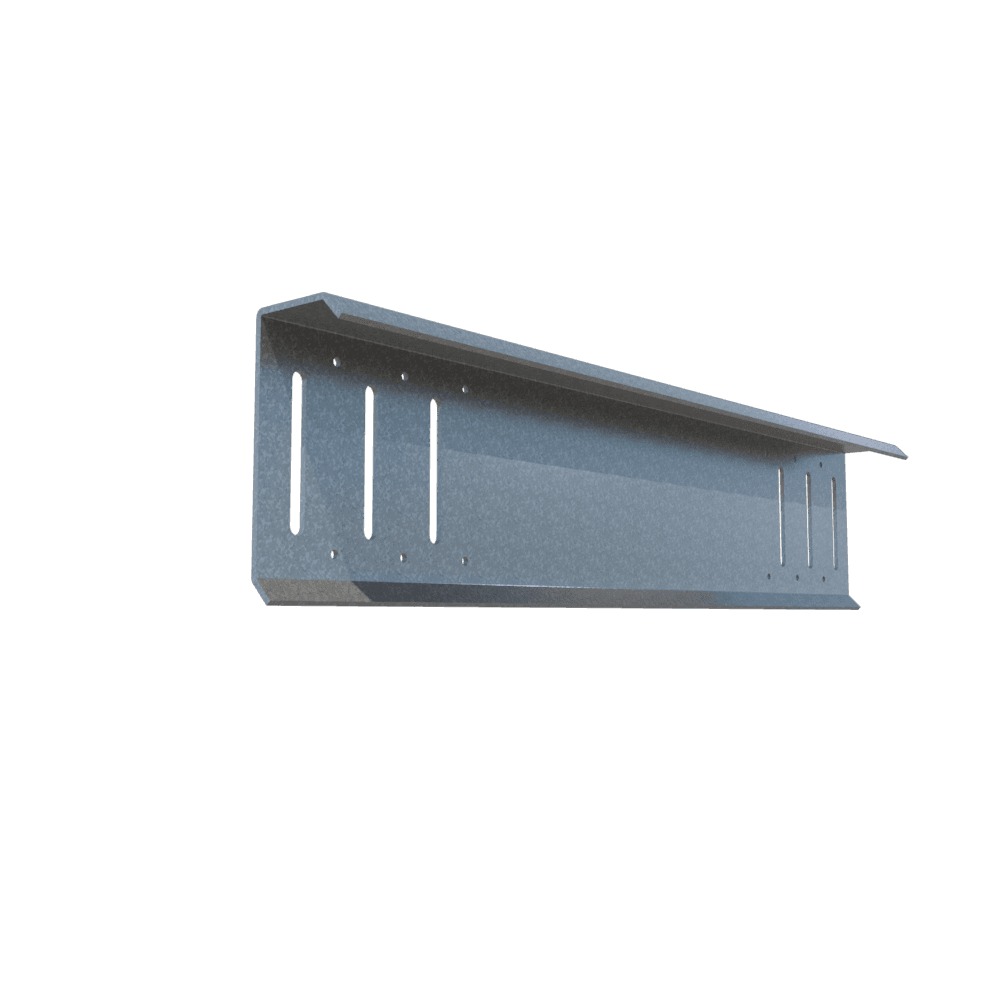

| USC20-68 | 68 (14) | 4 x 1-1/2 x 20 | 10 |

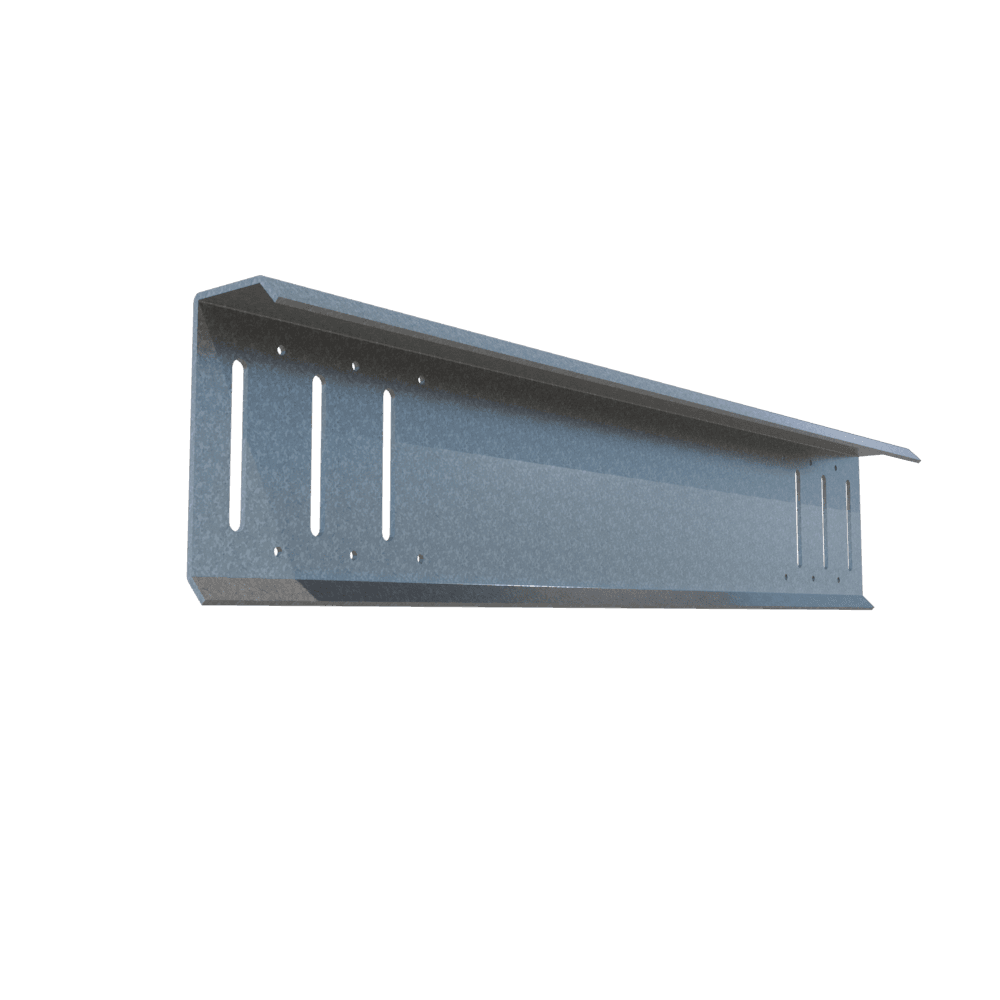

| USC22-68 | 68 (14) | 4 x 1-1/2 x 22 | 10 |

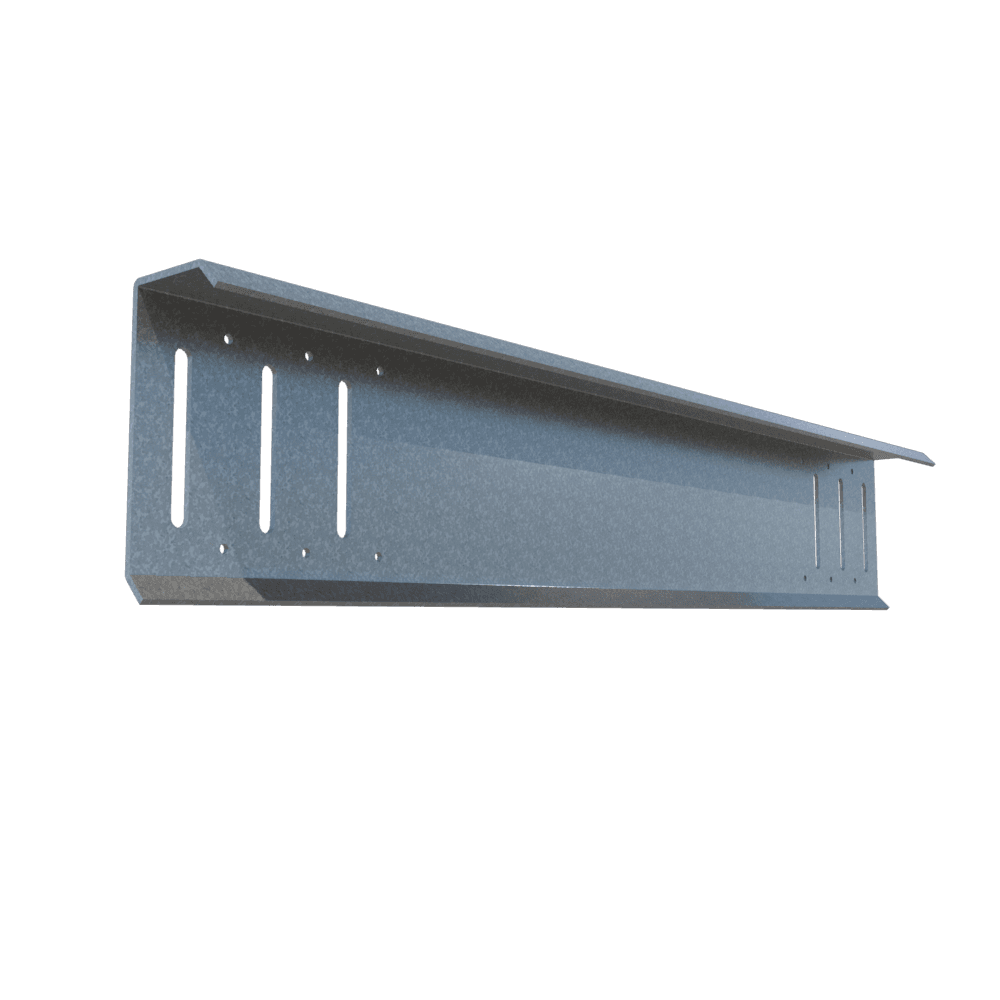

| USC24-68 | 68 (14) | 4 x 1-1/2 x 24 | 10 |
Includes 55 Proprietary Deflection Screws per box
