RedHeader Lite Rough Opening SystemNew

replaces multiple jamb studs for interior rough openings

Designed to replace conventional built-up jambs and headers while providing better results in half the time.

Quick Actions:

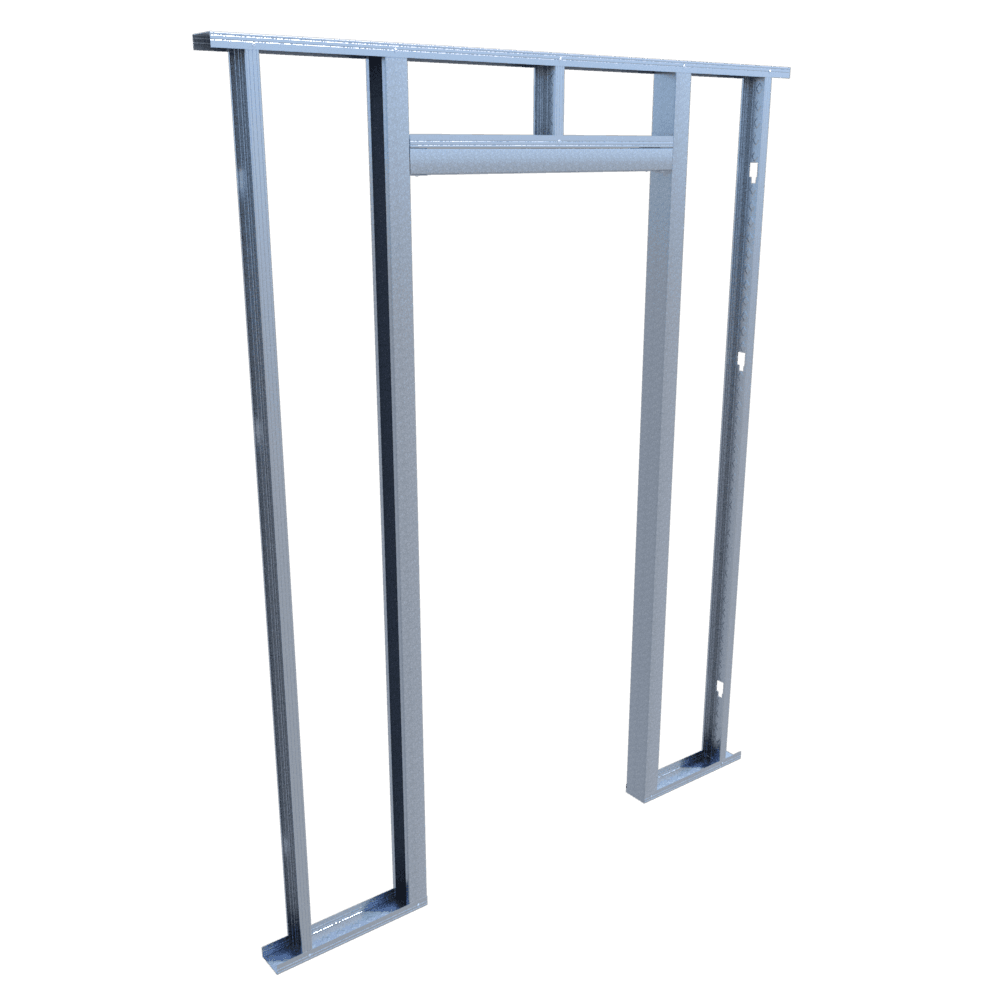

RedHeader Lite rough opening system

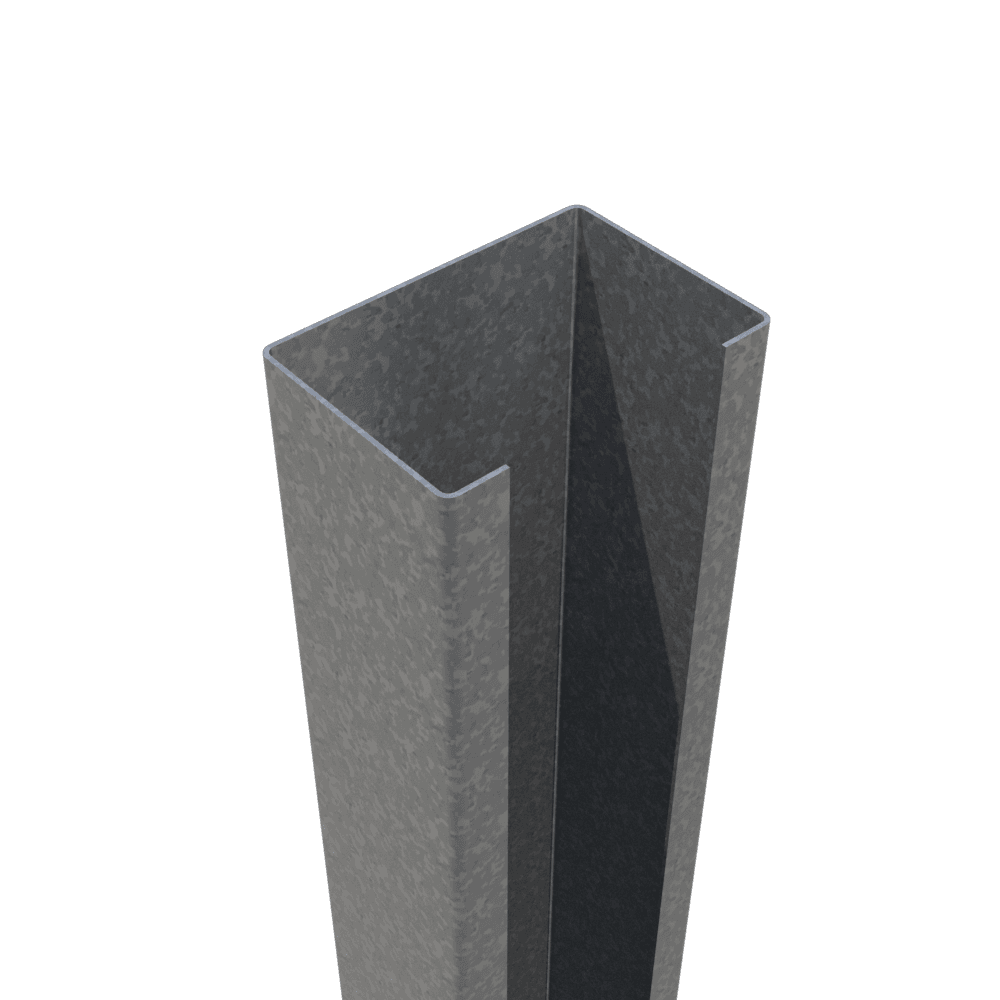

RedHeader Lite is designed to replace conventional built-up jambs and headers while providing better results in half the time. One-piece jambs eliminate the additional studs, track and screws required to frame conventional rough openings.

Construction Advantages:

Eliminates built-up jambs and headers.
Reduces material pieces and screws by up to 50%.
The header easily slides into the RHLC Clip or utilizes a select group of EasyClip™ S-Series clips
Opened jamb and header stud does not require pre-insulating.
SAVES LABOR in installation and handling!

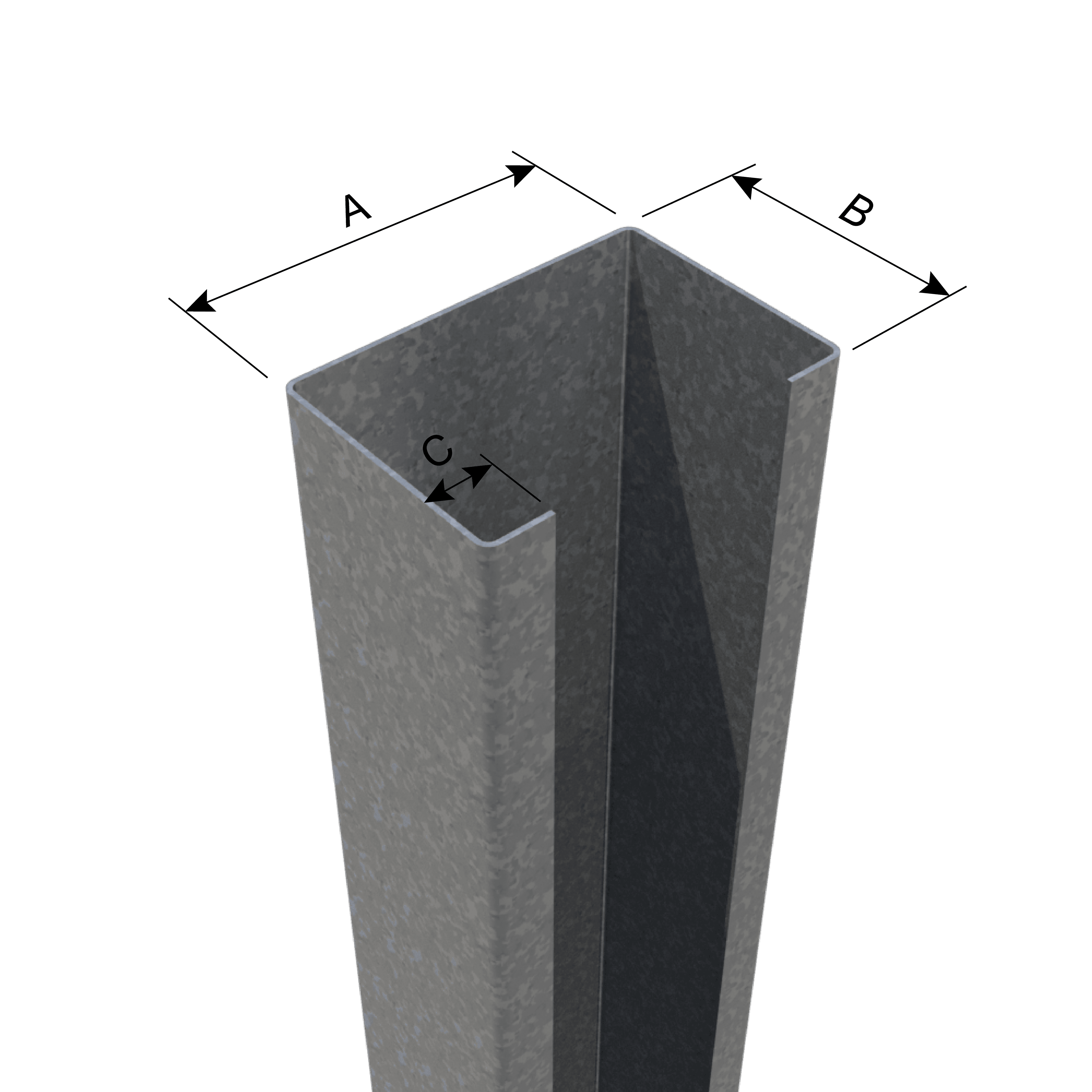

RedHeader Lite jamb and header Profile information

Product Code	Web Size (A)	Flange (B)	Return Lip (C)	Mils
250RHL250	2-1/2"	2-1/2"	5/8"	33 or 43
362RHL250	3-5/8"	2-1/2"	5/8"	33 or 43
400RHL250	4"	2-1/2"	5/8"	33 or 43
600RHL250	6"	2-1/2"	5/8"	33 or 43

Punching of jambs available upon request.

Material: 33 ksi
Coating: CP60 per AISI S240

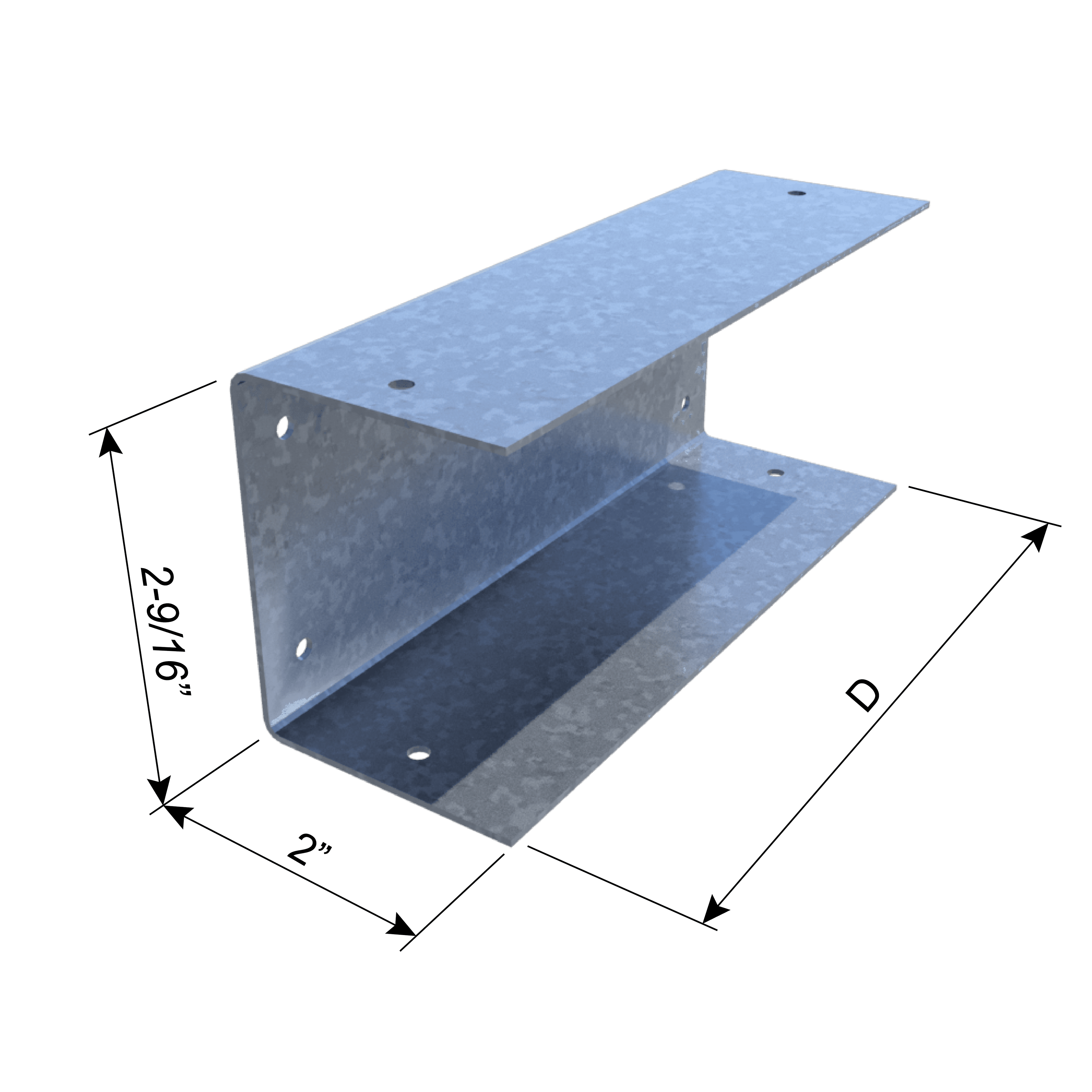

RHLC HEADER BRACKET (RHLC)

This simple, yet innovative header bracket turns interior header installation from a two-person job into a one-person job. This unique, pre-punched clip also eliminates surface head fastener buildup that can create finishing challenges.

Product Code	Depth (D)
237RHLC250-33	2-3/8"
350RHLC250-33	3-1/2"
387RHLC250-33	3-7/8"
587RHLC250-33	5-7/8"

Click here for the RHLC load table when used with RedHeader Lite

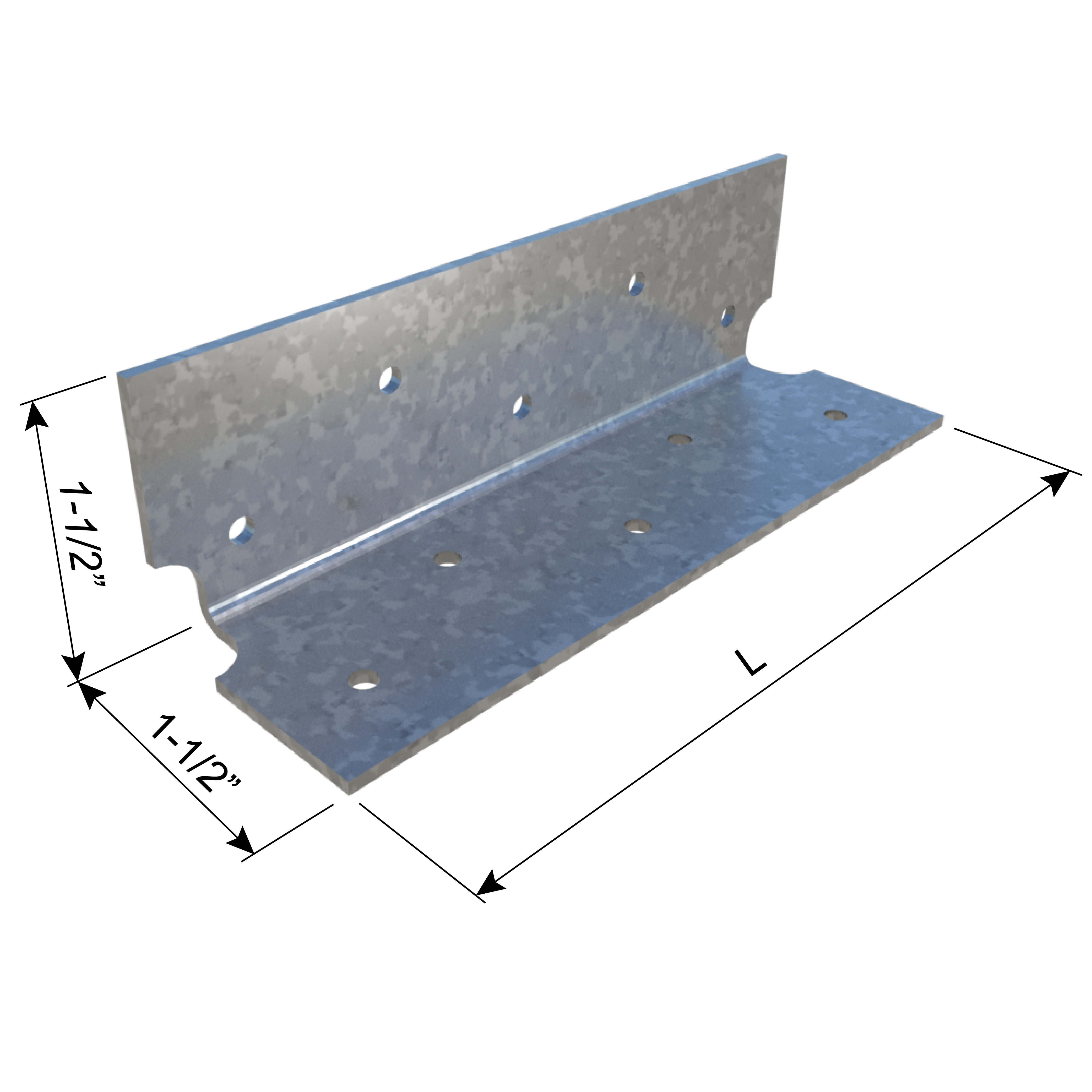

easyclip™ (s-series) Header clip

The pre-punched clip eliminates surface head fastener buildup that can create finishing challenges.

Product Code	Length (L)
S542	2"
S543	3"
S545	5"
