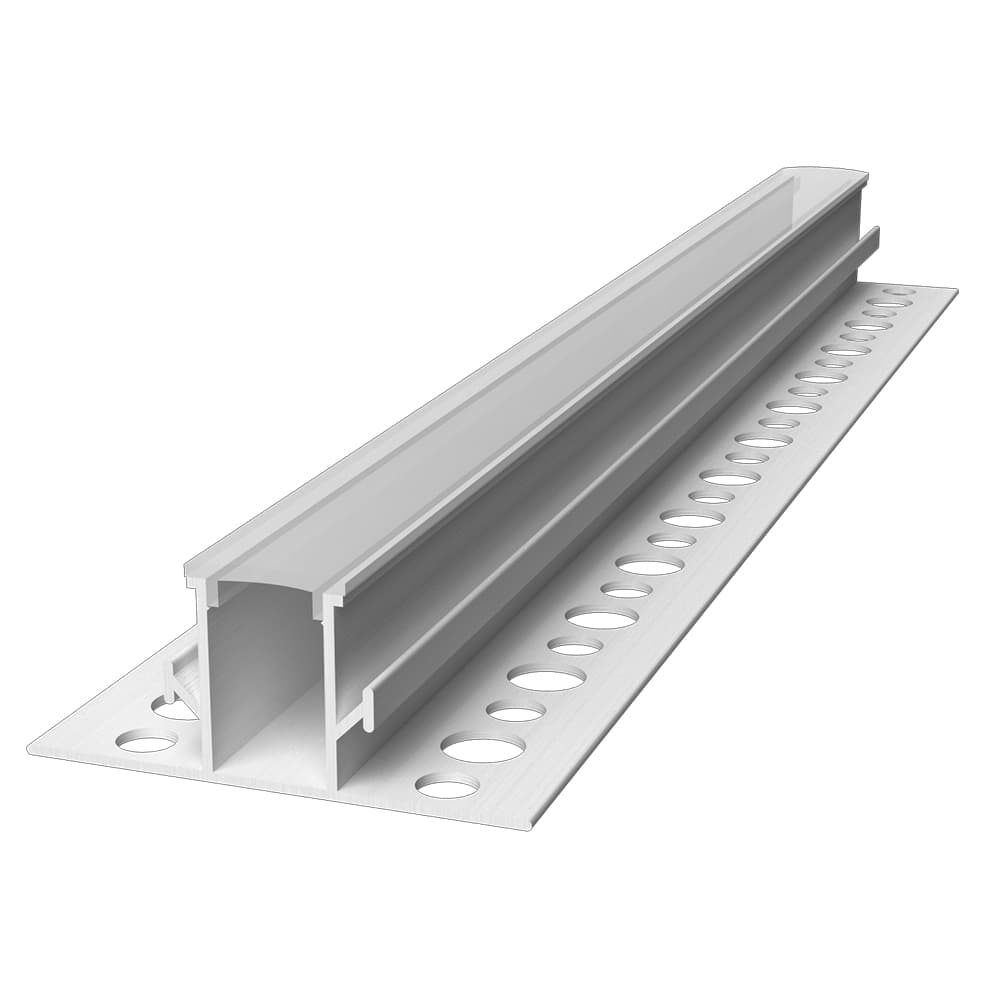

Channel Reveal (with perforated flanges)
Create 1/4" to 2" reveals in stucco and plaster surfaces
Clips are provided for alignment and as a base for sealants.
Quick Actions:
Create 1/4" to 4" reveals in stucco and plaster surfaces. Clips are provided for alignment and as a base for sealants. Factory fabricated intersections of crosses, T's, L's, inside and outside corners, and end closures of channel reveals are available to form clear channels.
Optional protective reveal caps available. Contact your sales rep at vinylcorpsales@clarkdietrich.com if interested regarding cost and lead time.
Product Data & Ordering Information

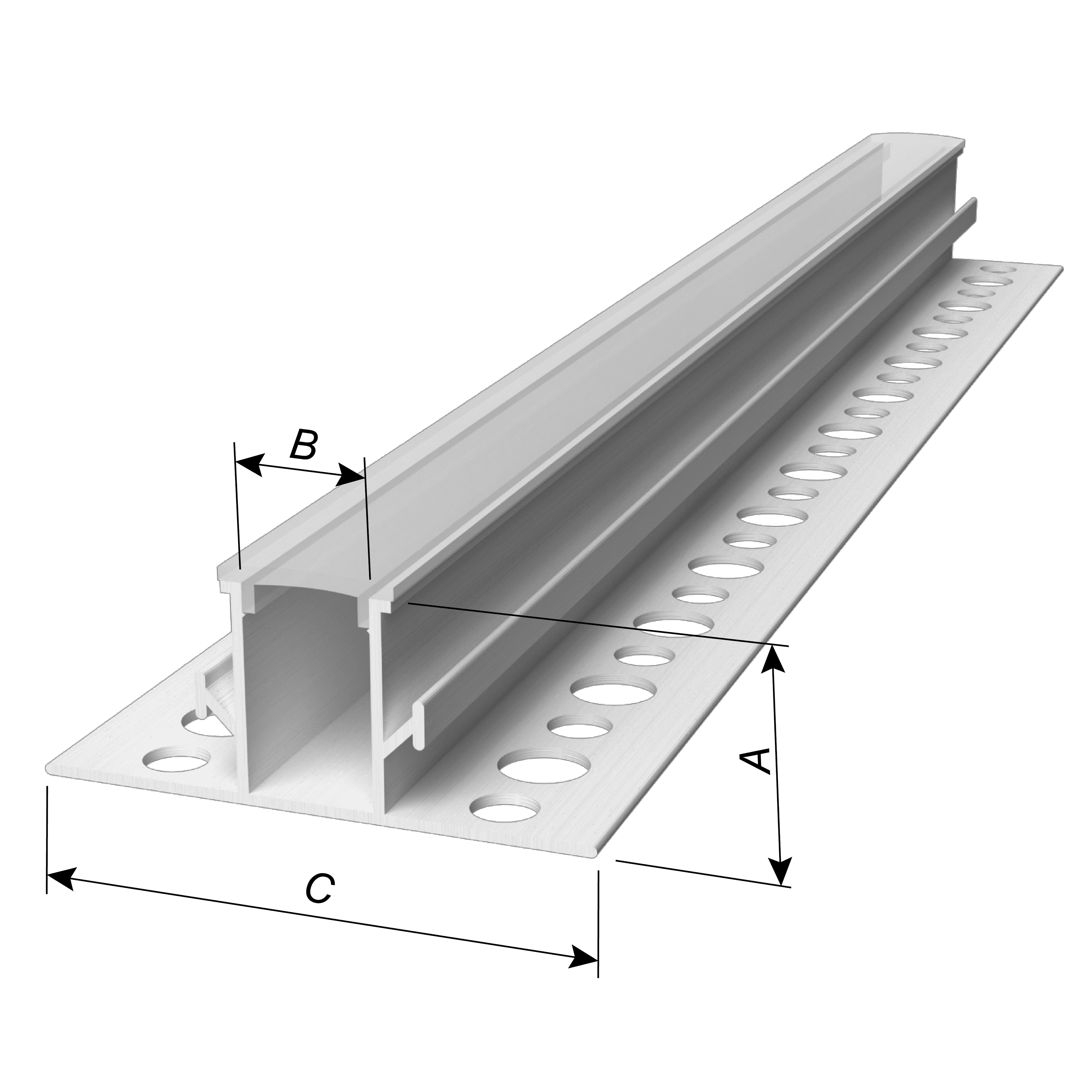

| Product code | Ground (A) | Reveal (B) | Overall Width (C) | Pcs./Box |
|---|---|---|---|---|
| CS25-50 | 1/4" | 1/2" | 2-1/8" | 50 |
| CS38-50 | 3/8" | 35 | ||
| CS50-50 | 1/2" | 35 | ||
| CS58-50 | 5/8" | 25 | ||
| CS75-50 | 3/4" | 25 | ||
| CS78-50 | 7/8" | 25 | ||
| CS100-50 | 1" | 20 | ||
| CS25-75 | 1/4" | 3/4" | 3-1/8" | 50 |
| CS38-75 | 3/8" | 35 | ||
| CS50-75 | 1/2" | 35 | ||
| CS58-75 | 5/8" | 25 | ||
| CS75-75 | 3/4" | 25 | ||
| CS78-75 | 7/8" | 18 | ||
| CS100-75 | 1" | 15 | ||
| CS25-100 | 1/4" | 1" | 3-1/8" | 50 |
| CS38-100 | 3/8" | 25 | ||
| CS50-100 | 1/2" | 25 | ||
| CS58-100 | 5/8" | 25 | ||
| CS75-100 | 3/4" | 25 | ||
| CS78-100 | 7/8" | 18 | ||
| CS100-100 | 1" | 15 | ||
| CS25-150 | 1/4" | 1-1/2" | 3-1/8" | 50 |
| CS38-150 | 3/8" | 20 | ||
| CS50-150 | 1/2" | 20 | ||
| CS58-150 | 5/8" | 20 | ||
| CS75-150 | 3/4" | 20 | ||
| CS78-150 | 7/8" | 17 | ||
| CS100-150 | 1" | 12 | ||
| CS25-200 | 1/4" | 2" | 4" | 40 |
| CS38-200 | 3/8" | 20 | ||
| CS50-200 | 1/2" | 15 | ||
| CS58-200 | 5/8" | 14 | ||
| CS75-200 | 3/4" | 14 | ||
| CS78-200 | 7/8" | 12 | ||
| CS100-200 | 1" | 12 | ||
| CS25-250 | 1/4" | 2-1/2" | 5" | 15 |
| CS50-250 | 1/2" | 15 | ||
| CS58-250 | 5/8" | 15 | ||
| CS75-250 | 3/4" | 15 | ||
| CS78-250 | 7/8" | 15 | ||
| CS100-250 | 1" | 15 | ||
| CS25-300 | 1/4" | 3" | 5" | 15 |
| CS50-300 | 1/2" | 15 | ||
| CS58-300 | 5/8" | 15 | ||
| CS75-300 | 3/4" | 15 | ||
| CS78-300 | 7/8" | 13 | ||
| CS100-300 | 1" | 10 | ||
| CS25-400 | 1/4" | 4" | 6" | 15 |
| CS50-400 | 1/2" | 15 | ||
| CS58-400 | 5/8" | 15 | ||
| CS75-400 | 3/4" | 14 | ||
| CS78-400 | 7/8" | 12 | ||
| CS100-400 | 1" | 10 |
Notes:
- All profiles are provided in 10'-0" lengths.
- All with removable caps (except 1/4" and 3/8" grounds) and 2-1/2", 3" and 4" reveals. All with connector clips (except 1/4" grounds).
