Barrier Mesh System Tested for Impact ResistanceNew

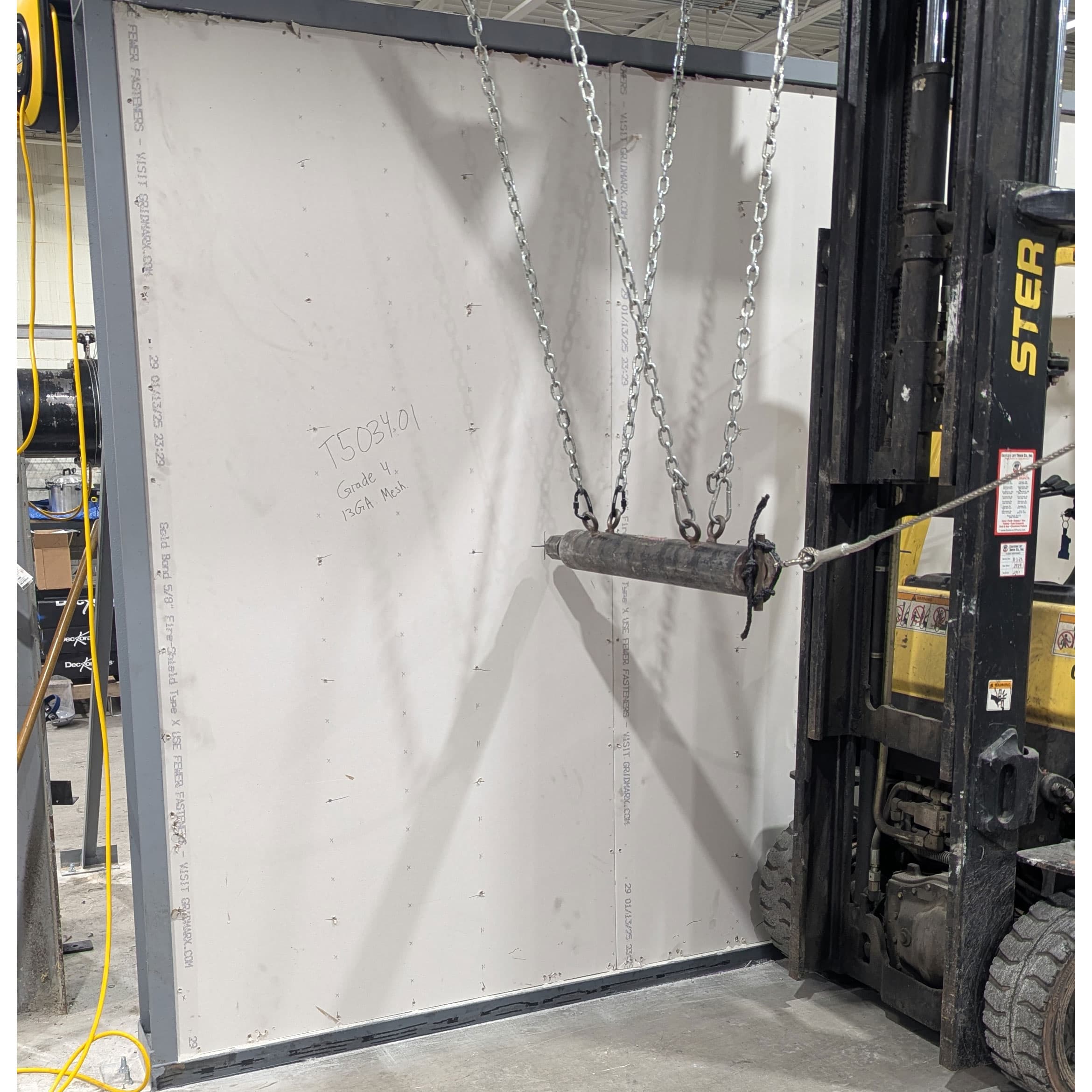

Modified Barrier Mesh™ has been 3rd Party Tested in a Cold formed steeel Framed Assembly
Tested to ASTM F2322 - Test Method for Physical Assault on Vertical Fixed Barriers. The framed assembly back up behind the Mesh contributes to the Impact Resistance of the Vertical Walls.
Quick Actions:
Product Data:

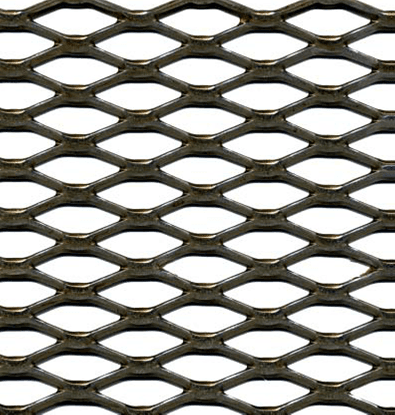

Material: Type II, Class 1 - Carbon Steel - Mesh, complying with ASTM A1011 & ASTM F1267 (mesh modified to reinforce walls)
Standard Sheet Size: 48” x 96”
| Product Code | Nom. Gauge | Overall Thickness | Modified Diamond | Bond Size (SWDxLWD) | Weight lbs/100ft² | Percent of Open Area | Impact Grade (#/cycles) |
|---|---|---|---|---|---|---|---|
| BM50-9-Impact | 9 | .110" | 1/2" | .500" x 1.26" | 306 | 32 | #3 / 200 |
| BM50-13-Impact | 13 | .078" | 1/2" | .500" x 1.26" | 216 | 32 | #4 /100 |
